Kawasaki Teryx KRX & KRX4 1000 Winch Mounting Plate

A winch gets all the attention. The mounting plate is what decides if it holds or fails.

If the mount flexes, shifts, or interferes with suspension, your winch becomes unreliable when you need it most. This plate is built to handle real loads without compromising fitment or strength.

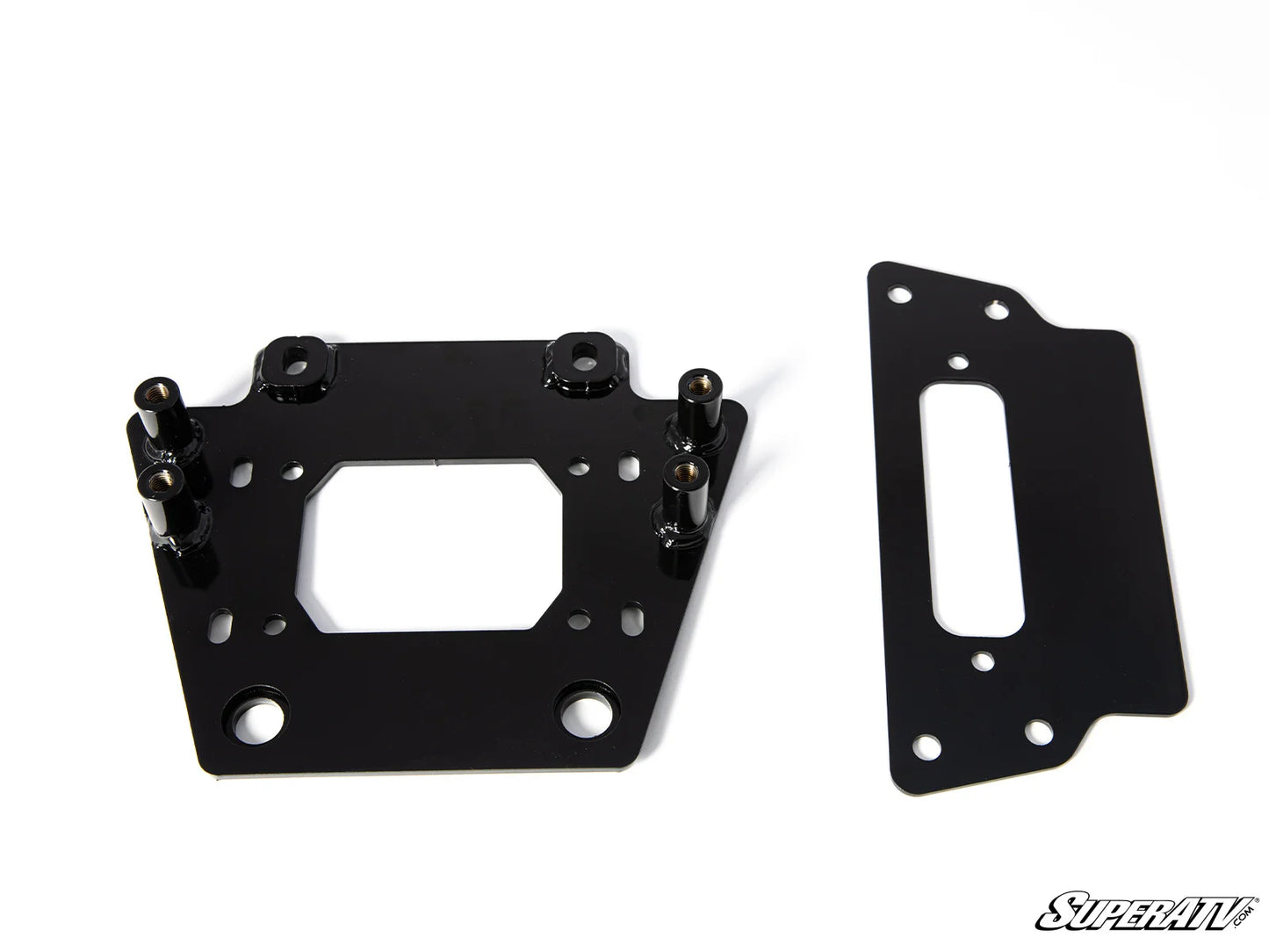

• 3/16” heavy-duty steel plate construction
• Laser cut and CNC brake press formed
• UV-resistant powder-coated finish
• Designed for 4500 lb winch applications
• Standard mounting hole patterns for compatibility
• Quick bolt-on installation

Why This Matters:

• Your winch is only as strong as what it’s mounted to. Weak mounts flex under load and can cause misalignment, failure, or damage.

Strength Focus:

• 3/16” steel with formed bends adds rigidity where flat plates typically fail. Built to handle real recovery loads.

Winch Compatibility:

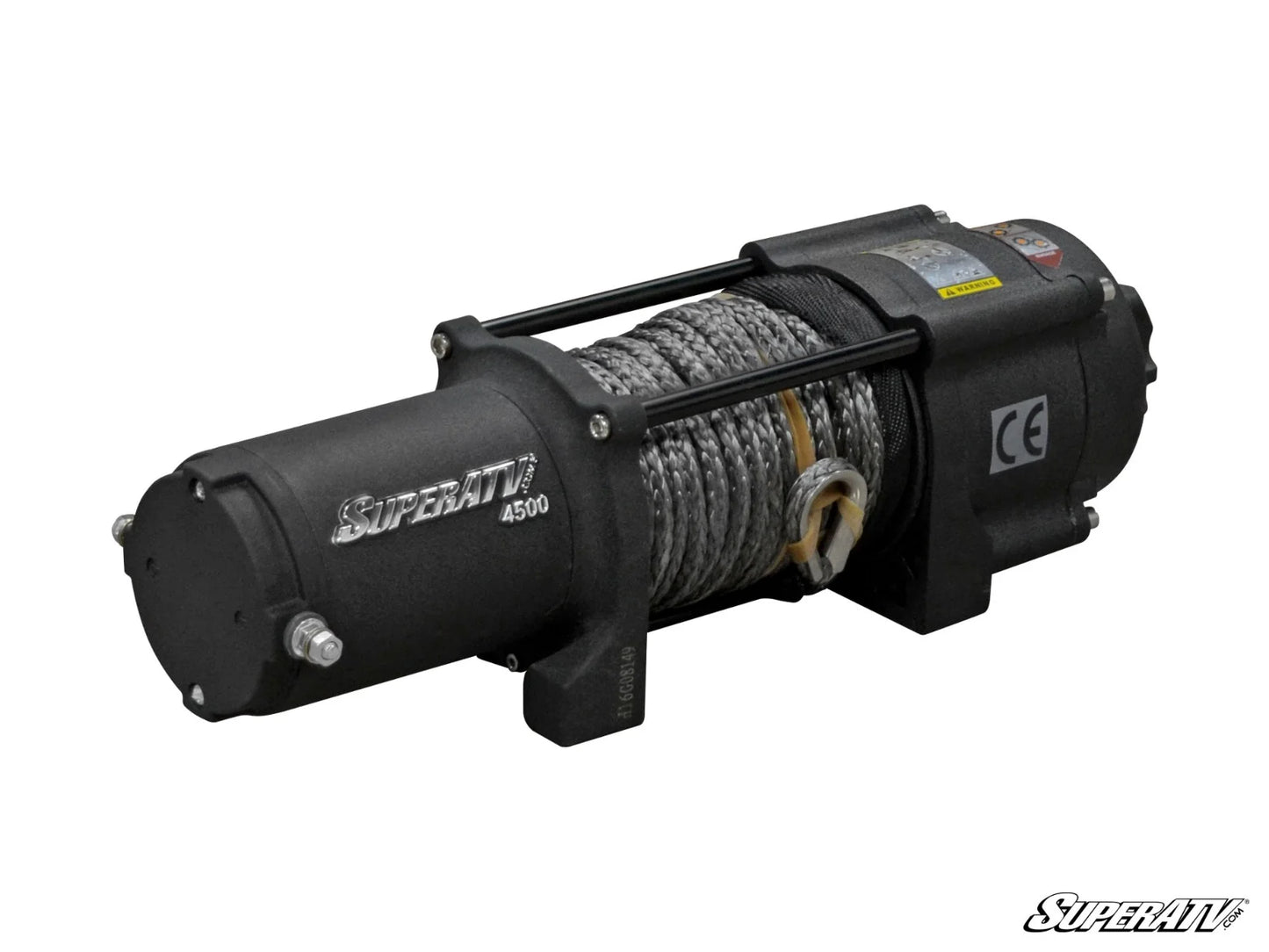

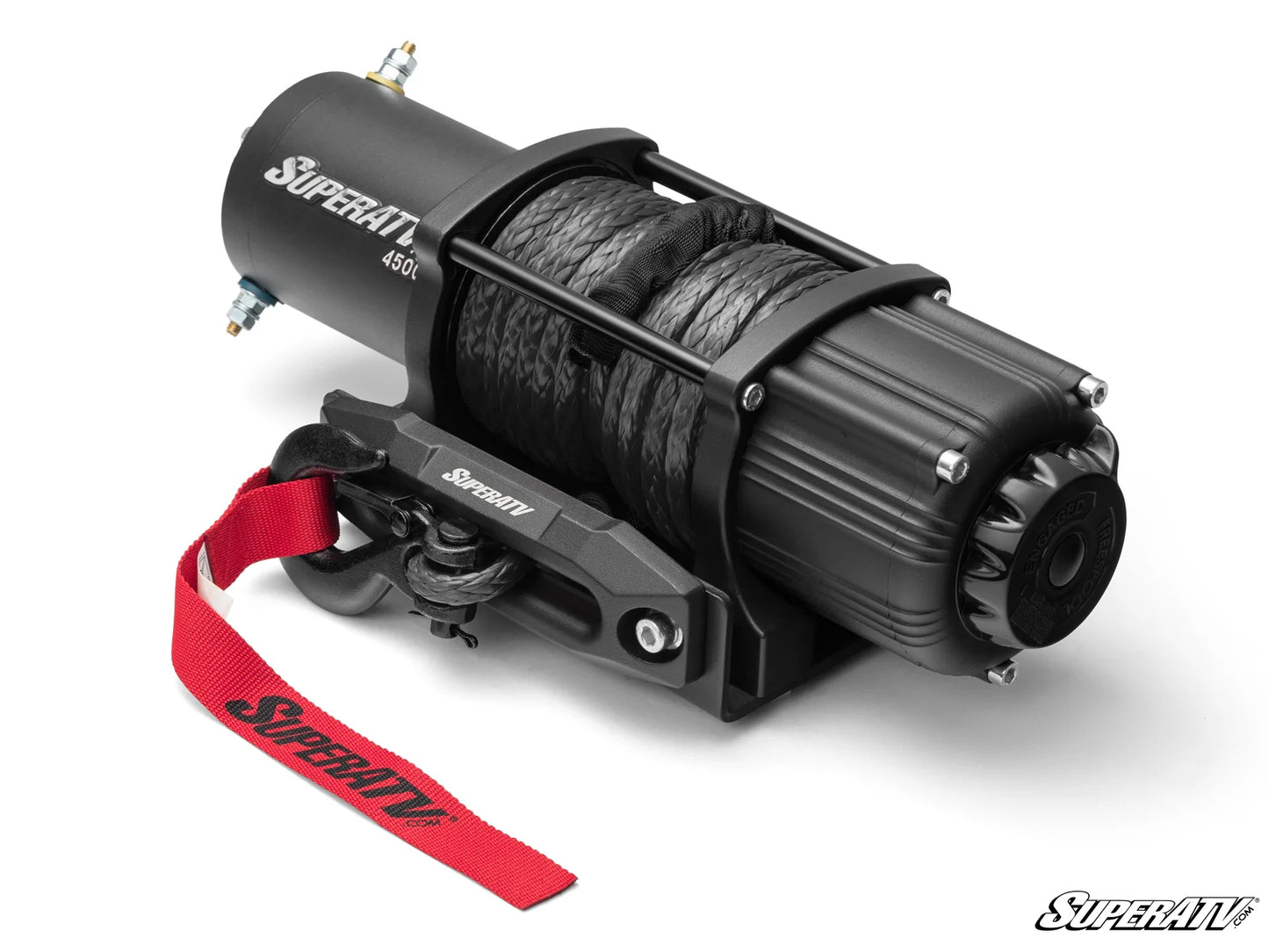

• Optimized for 4500 lb Black Ops Winch
• Works with many OEM and aftermarket winches

Important Limitation:

• Winches wider than 375 mm (14-3/4”) can contact the A-arm
  6000 lb Black Ops Winch is not recommended due to clearance issues

Fitment Constraint:

• Not compatible with SuperATV A-arms
• This is a critical detail and should not be overlooked during purchase.

Mounting Specs:

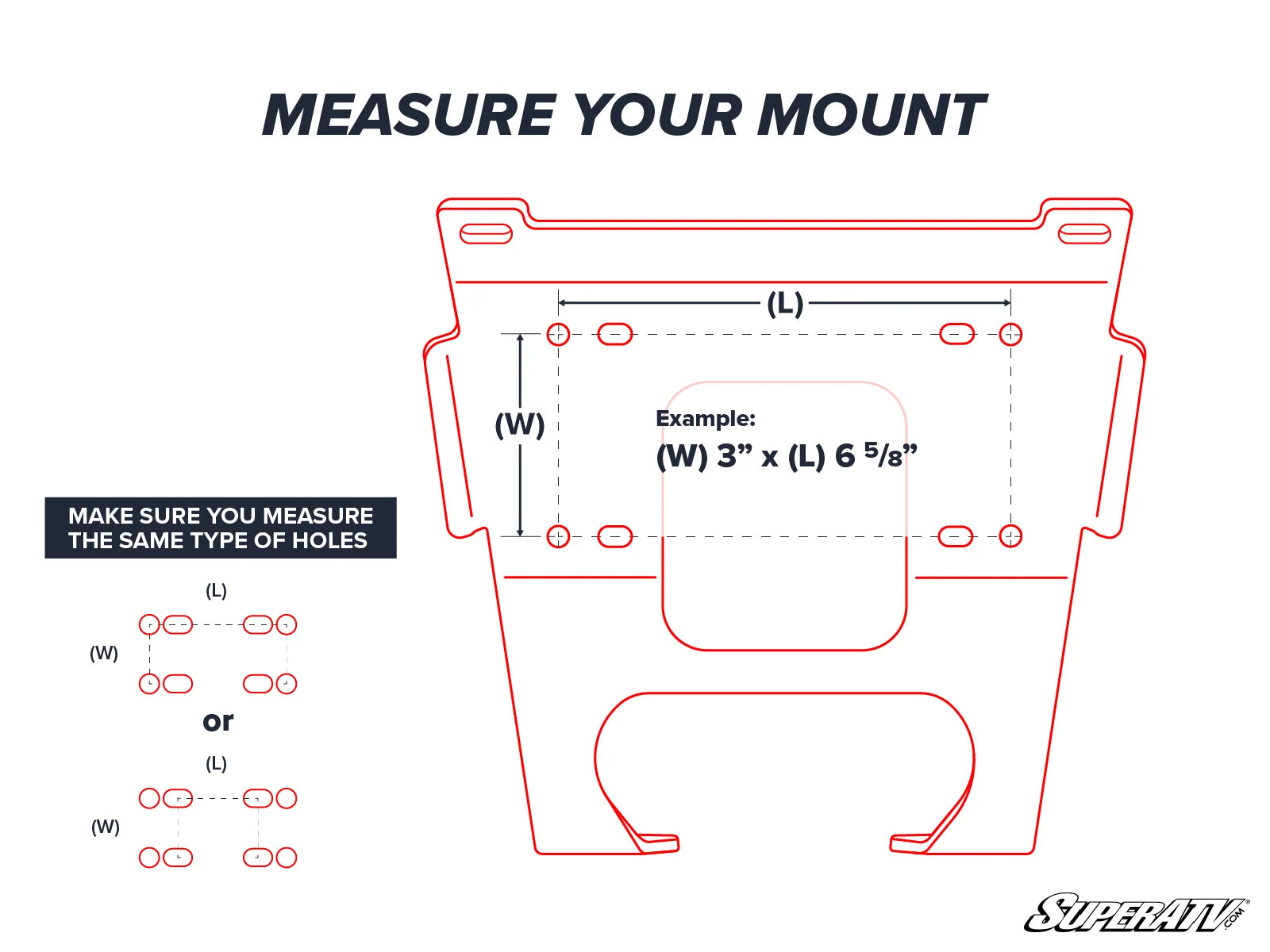

• Winch bolt pattern: 3" x 6 5/8" (76mm x 169mm)
• Fairlead bolt pattern: 152mm (5.98")

Use Case:

• Trail recovery
• Mud riding
• Property work where self-recovery is necessary

What This Is Not:

• Not a universal fit solution
• Not designed for oversized winches without checking clearance

WARNING: This product can impact machine operation. Customer and/or user is responsible for ensuring that this product is compatible with their machine as currently configured, properly installed, and understands any impact this product has or might have on the machine's operation.

⚠California Proposition 65 Warning ⚠
WARNING: This product may contain a chemical known to the State of California to cause cancer or birth defects or other reproductive harm.

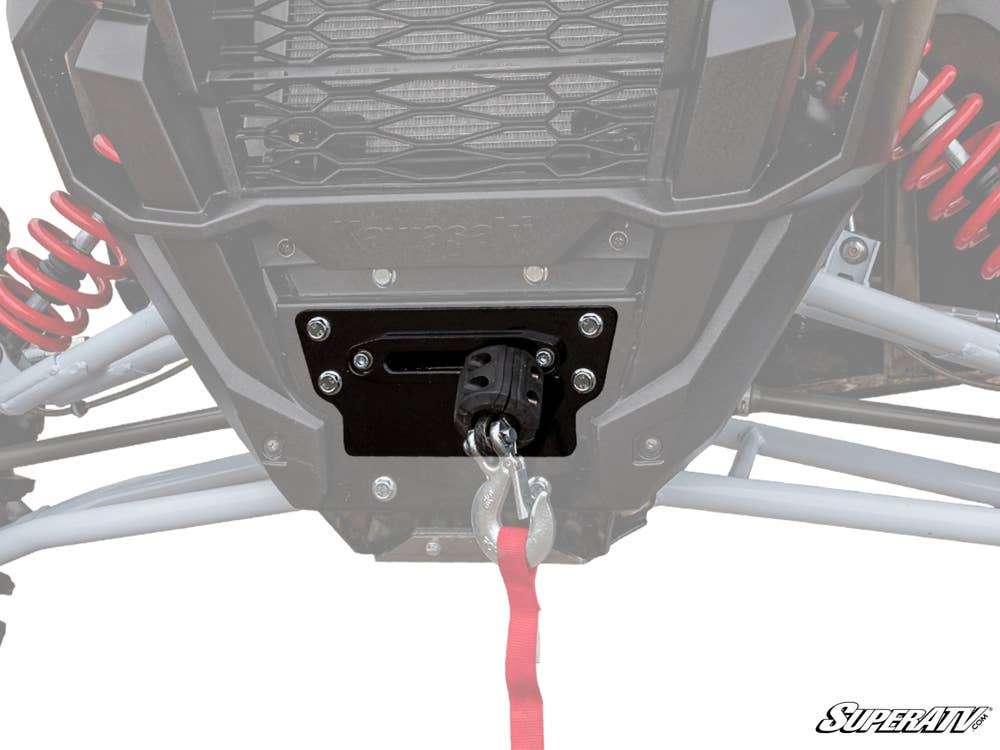

• Position mounting plate to factory mounting points
• Secure using included hardware
• Install winch to plate using standard bolt pattern
• Attach fairlead using correct spacing
• Check clearance around A-arms before operation
• Re-torque hardware after initial use
