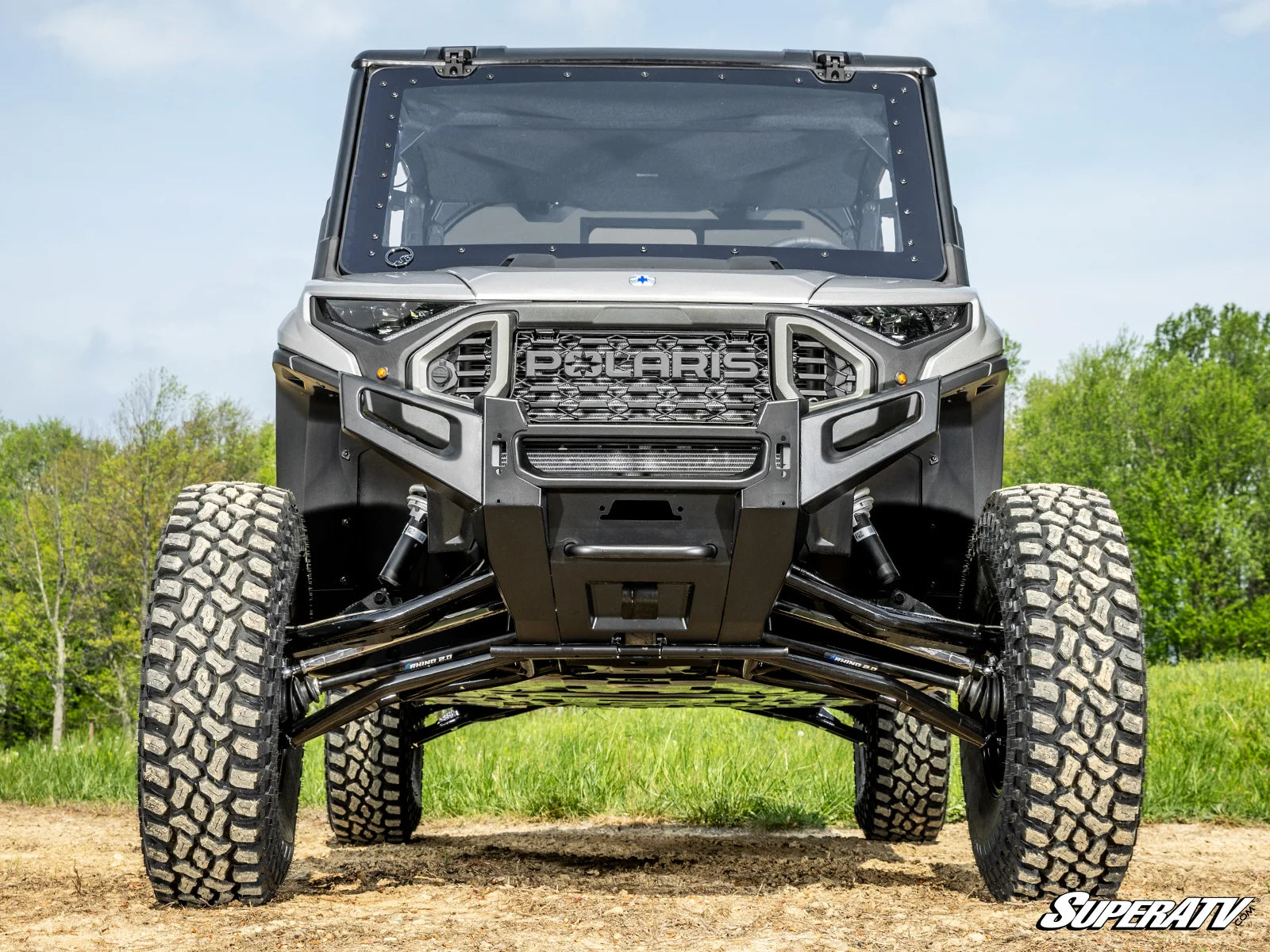

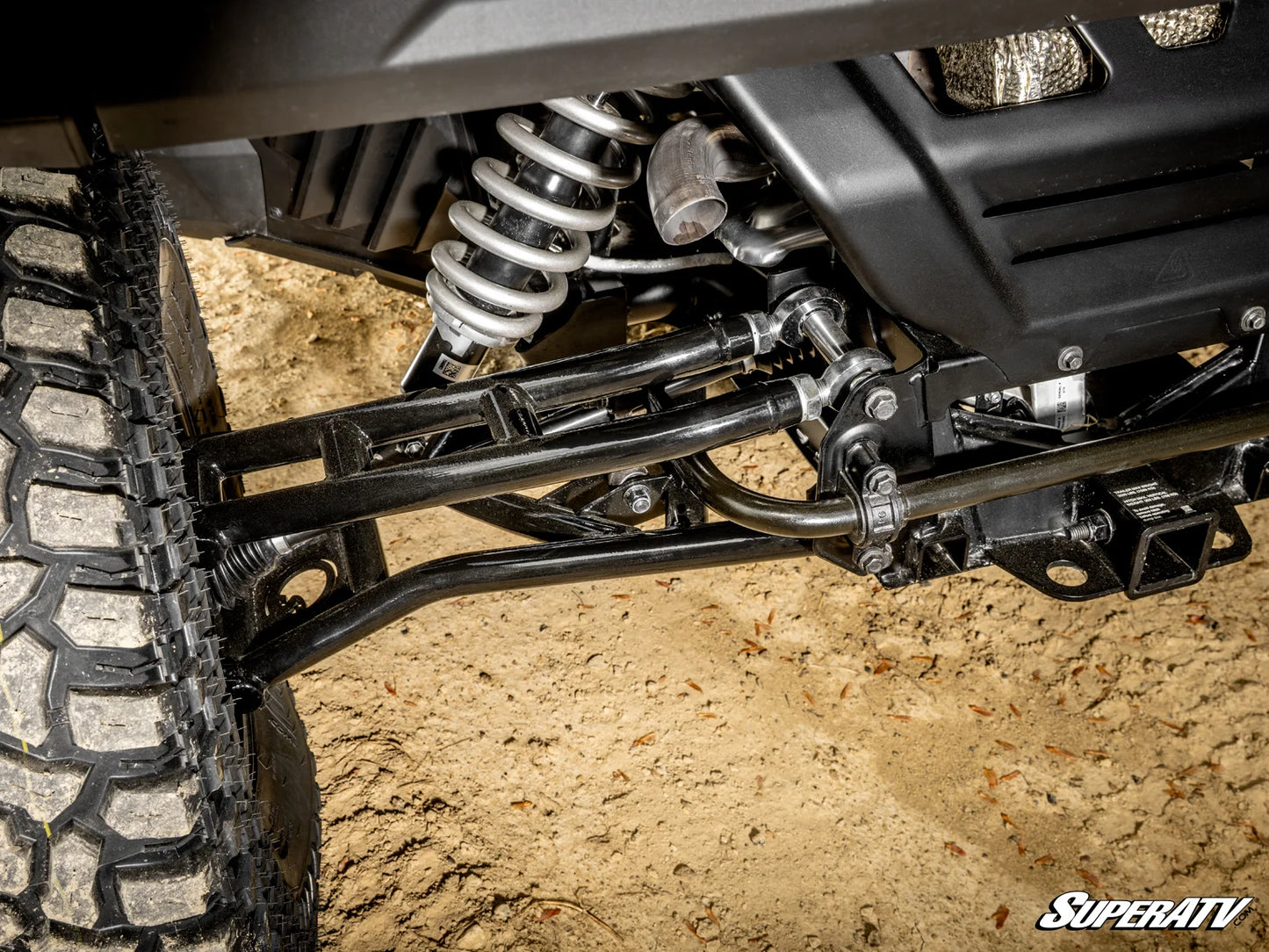

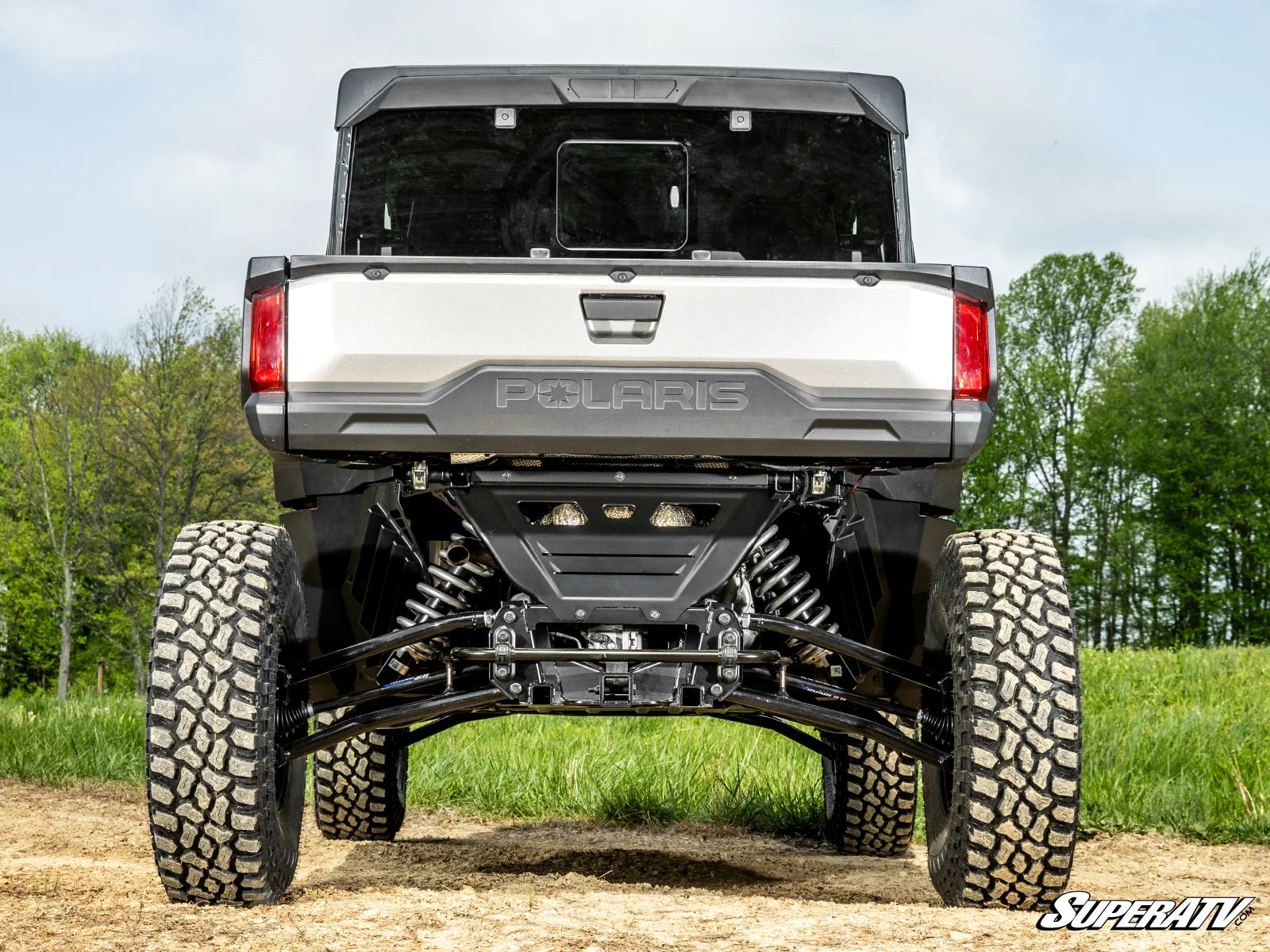

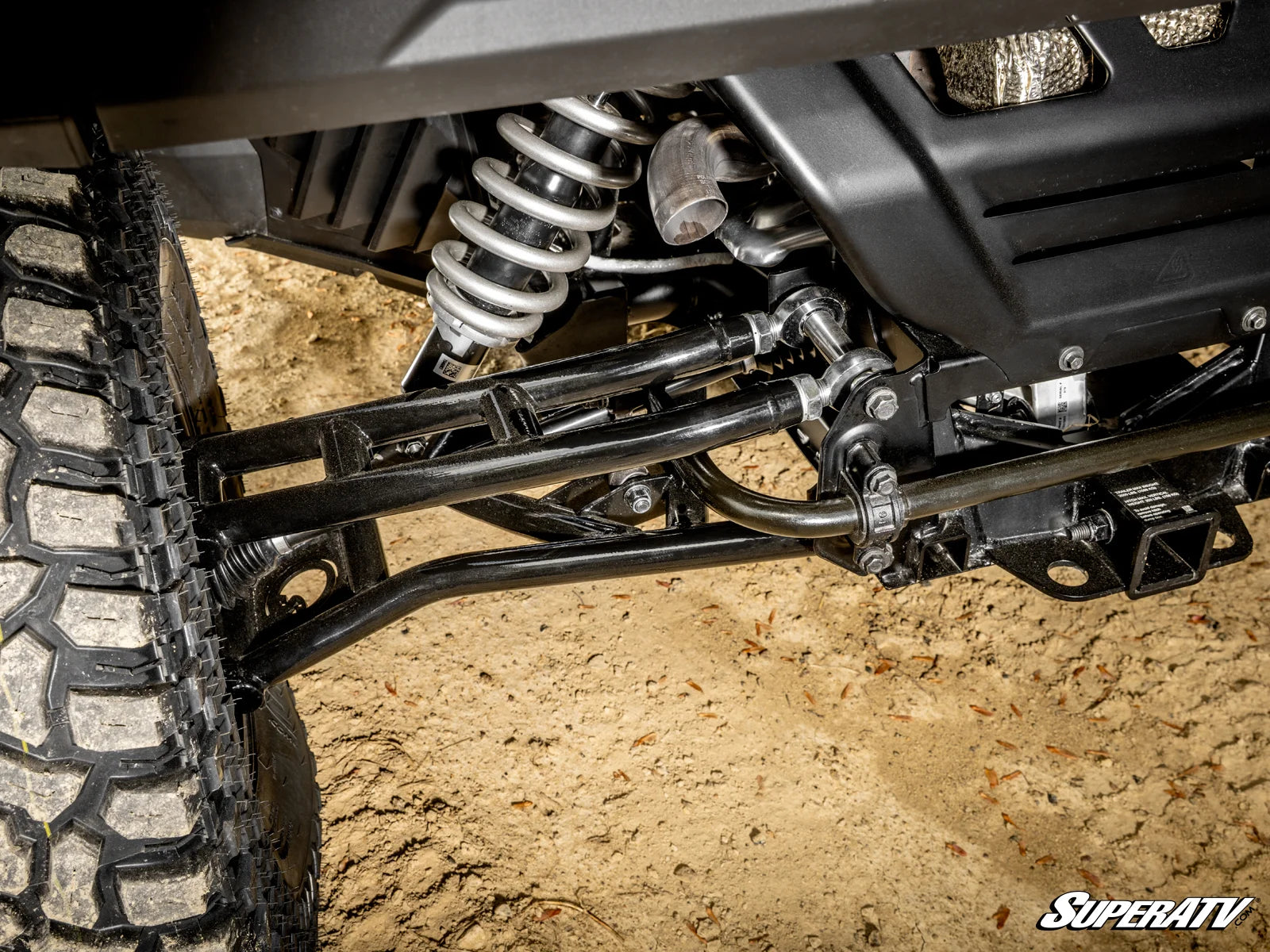

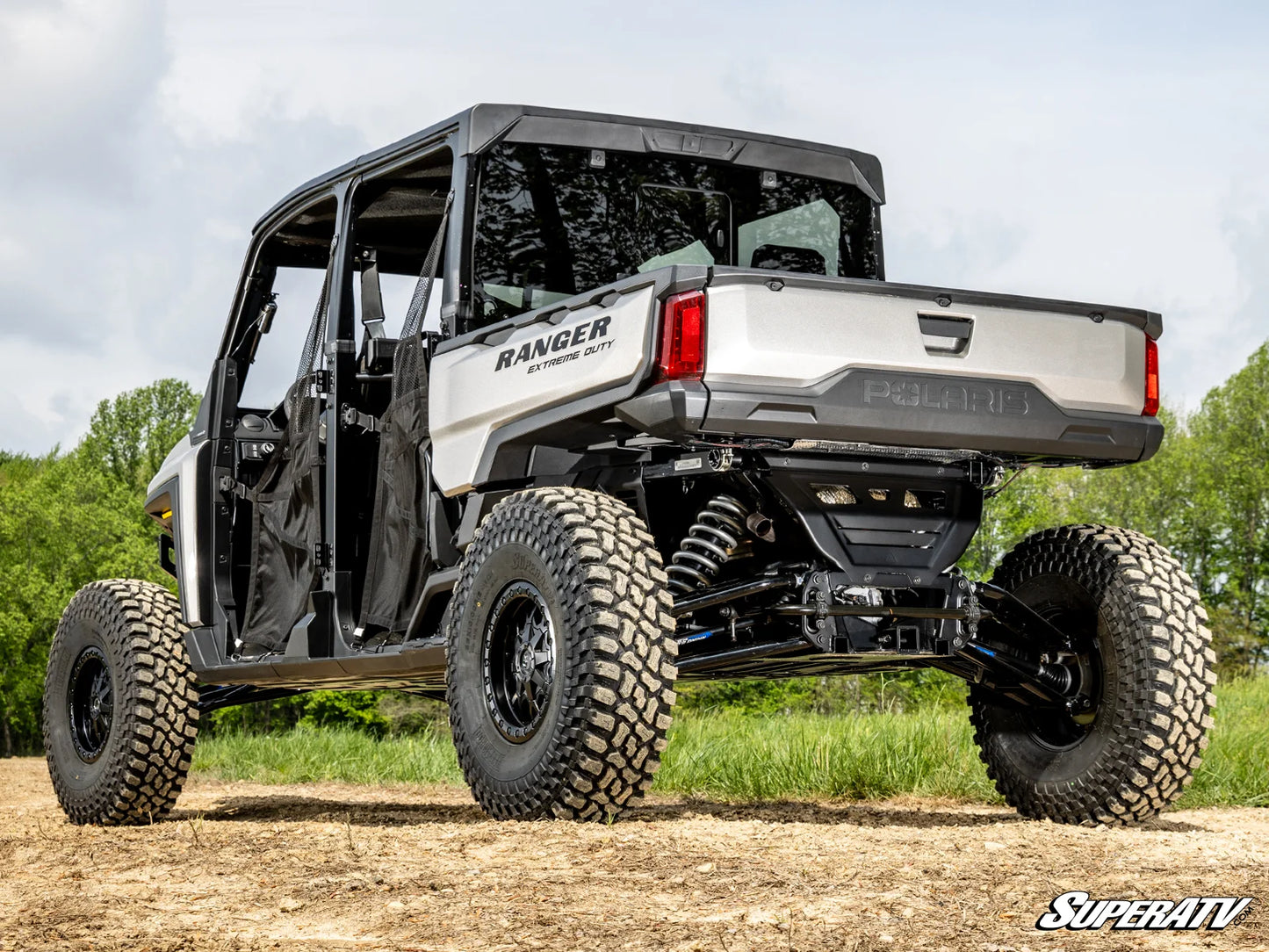

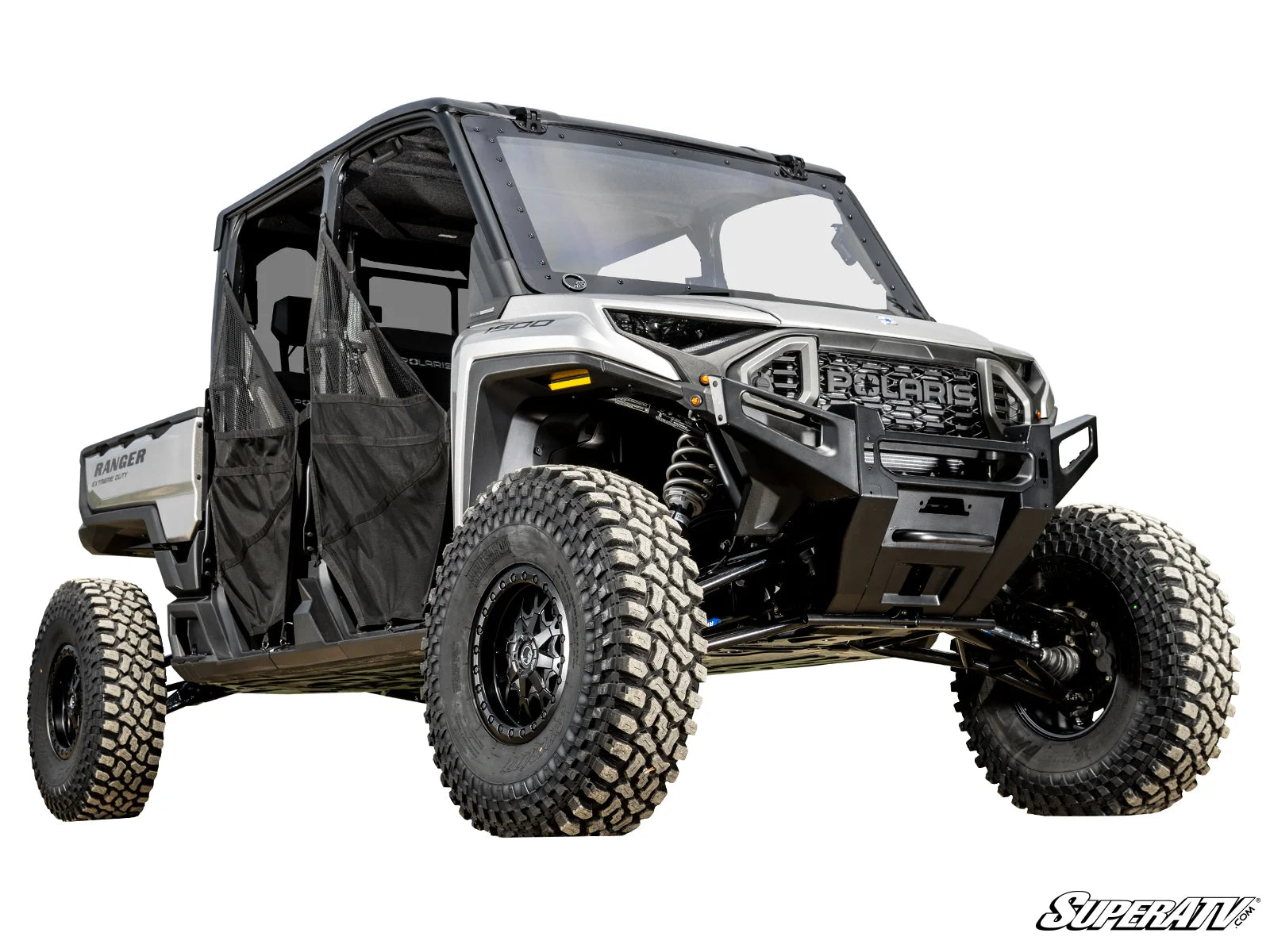

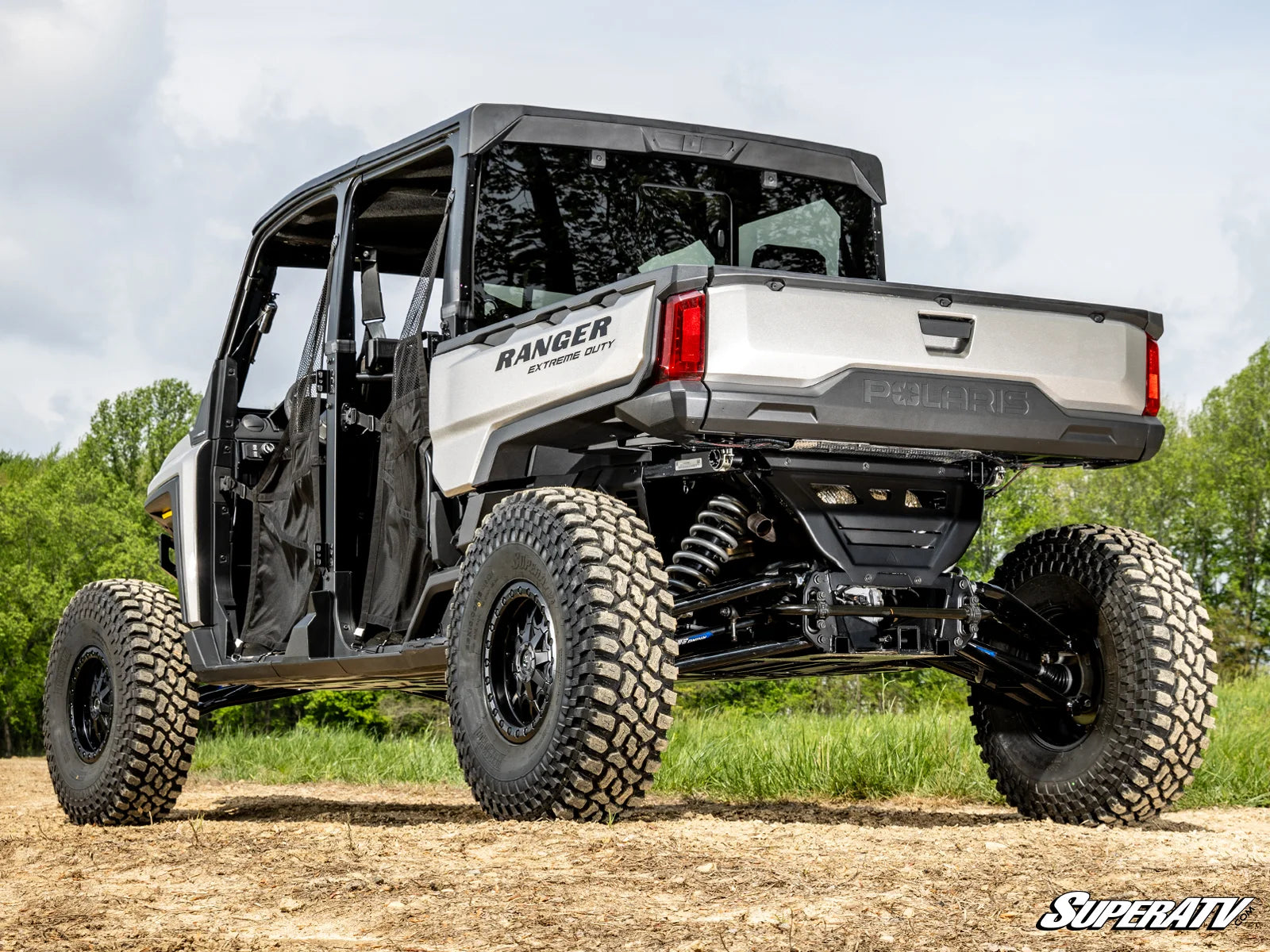

The Ranger XD 1500 is already a beast, but once you start pushing it harder, the stock suspension shows its limits fast. This 4” Long Travel Kit fixes that by widening your stance, improving stability, and giving you the clearance to run up to 36” tires.
This isn’t just about making it bigger. It’s about making it more controlled when the terrain gets rough. With stronger components across the board, A-arms, tie rods, and Rhino 2.0 axles, you’re upgrading the weak points so the machine actually holds up under real use.
Key features
Adds 4” per side (8” total width increase)
Allows up to 36” tires
1.5” forward offset for improved clearance and stance

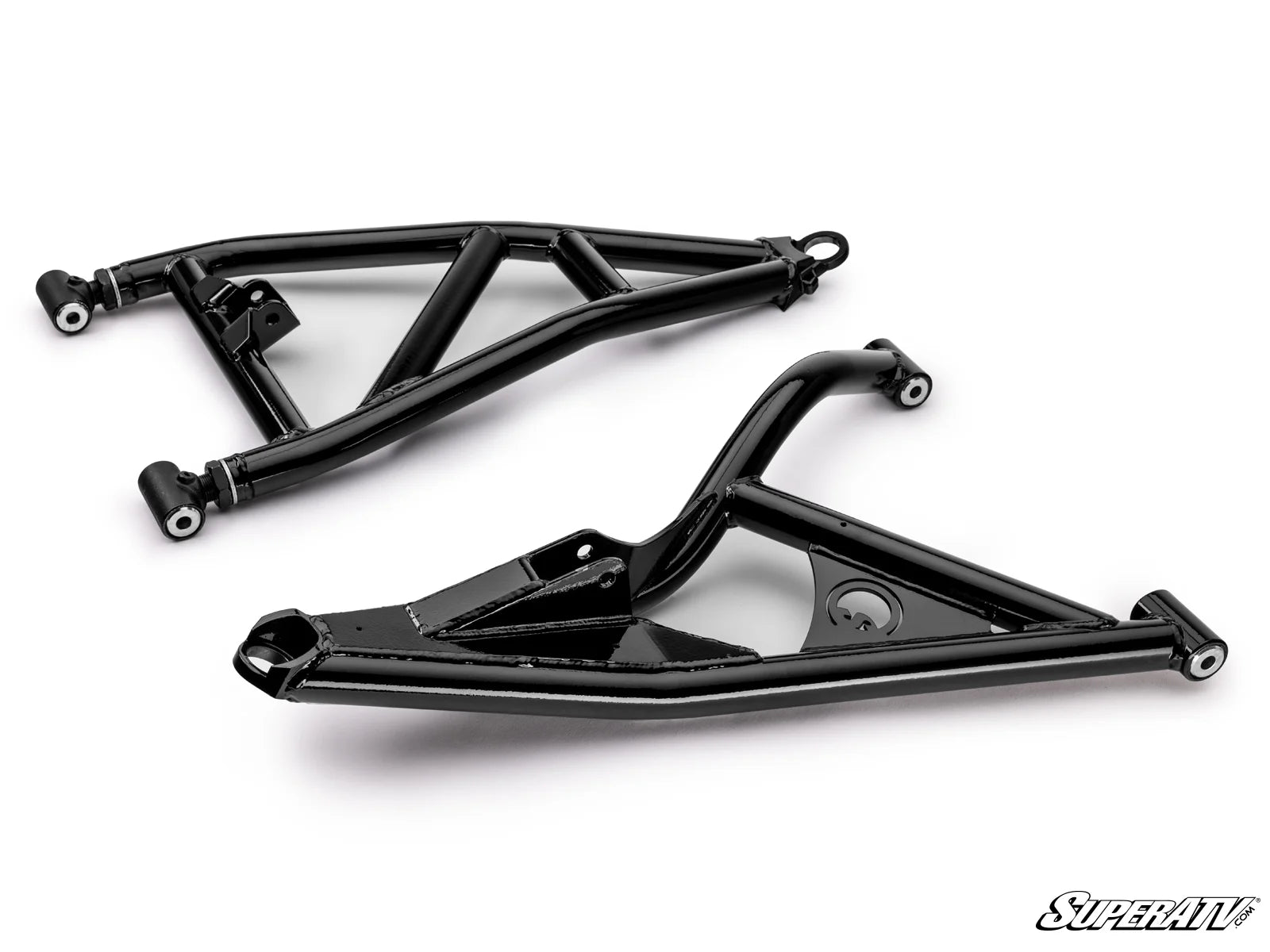

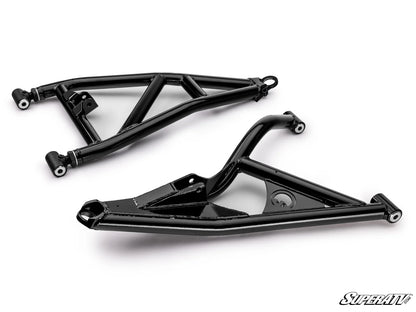

Atlas Pro A-arms with 1.5” diameter tubing
0.138” wall thickness for increased strength
Preinstalled UHMW bushings and sleeves
Preadjusted pivot blocks for proper camber
Includes full hardware for install

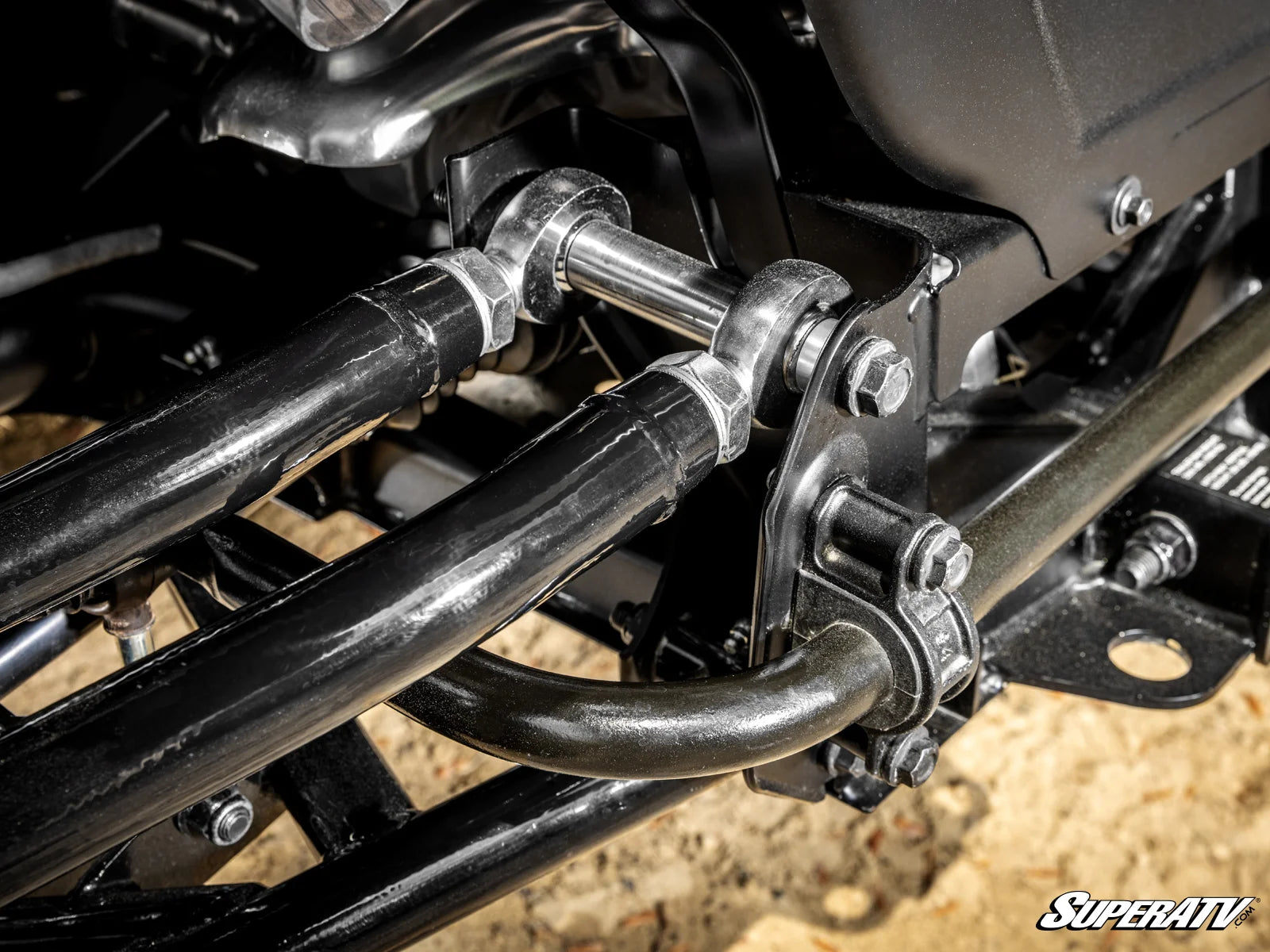

Billet Tie Rod System
6061-T6 billet aluminum construction
Heat-treated chromoly monoball tie rod ends
Adjustable without disassembly
Lifetime warranty
Rhino 2.0 Axles
Larger shaft size than stock
4340 chromoly construction with proprietary heat treatment
Designed for high articulation and durability18-month warranty
tips & Notes
Factory wheels require 1” wheel spacers
Built for larger tires, aggressive riding, and increased stability
Kit Includes:
Atlas Pro A-arms
Billet aluminum tie rod kit
Rhino 2.0 axles
Bushings and sleeves (preinstalled)
All required hardware
Ball joints not included
Must reuse stock or upgrade at checkout
Preinstalled ball joint option available
Ball joint upgrade options:
4340 heavy-duty
300M super-duty
Keller threaded ball joint
