Kawasaki Teryx S 6" Portal Gear Lift
Kawasaki Teryx S 6" Portal Gear Lift
SKU:PGH6-4-34-302-B#TRX
Couldn't load pickup availability
Share
If you’re serious about transforming your Kawasaki Teryx S, a portal lift is one of the most impactful upgrades you can make. SuperATV’s GDP 6” Portal Gear Lift gives you more ground clearance, room for bigger tires, and the option to dial in your performance with a 30% or 45% gear reduction. Whether you're building for mud, rocks, or all-around abuse, this setup lets you tailor your machine to how you actually ride.
Unlike traditional gearing changes, GDP portals place the gear reduction directly in the hub. That means less strain on your axles, prop shaft, and transmission, helping extend the life of your drivetrain while still giving you the torque you need. It’s a smarter way to add power without sacrificing reliability.
Built with 9310 alloy steel gears, precision-ground for smooth operation, and backed by your choice of cast or USA-made billet aluminum housings, these portals are designed to take a beating. Reinforced housings, advanced sealing, and high-end bearings all work together to deliver a system that’s built for real-world riding, not just specs on paper.
- 6” portal lift for increased ground clearance

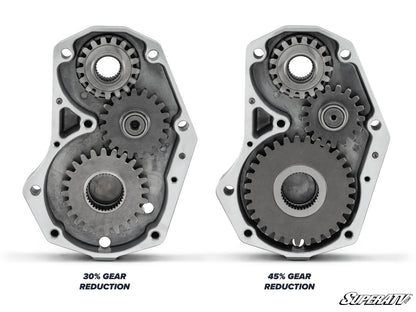

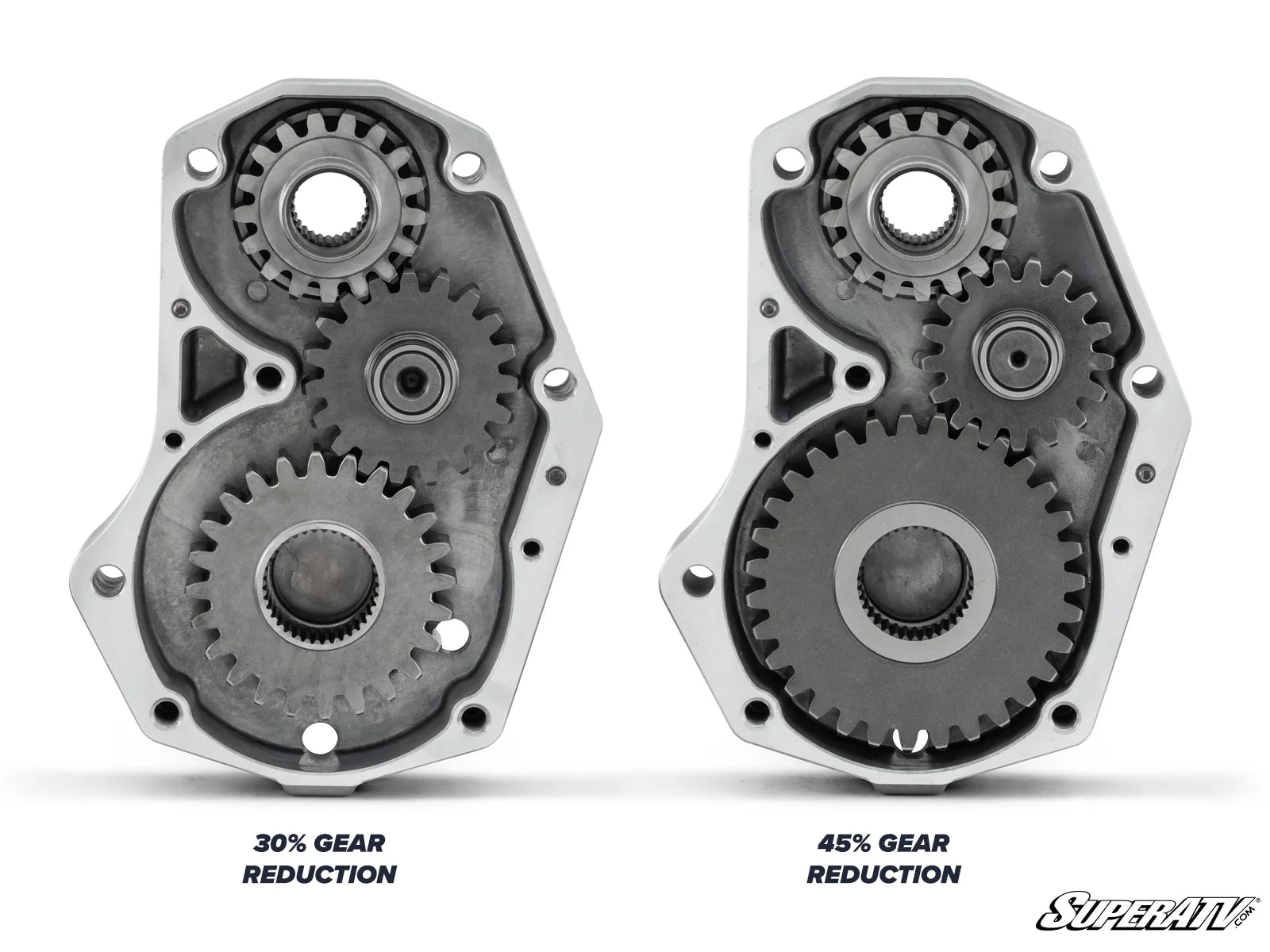

- Optional 30% or 45% gear reduction
- Gear reduction placed in the hub to reduce drivetrain stress

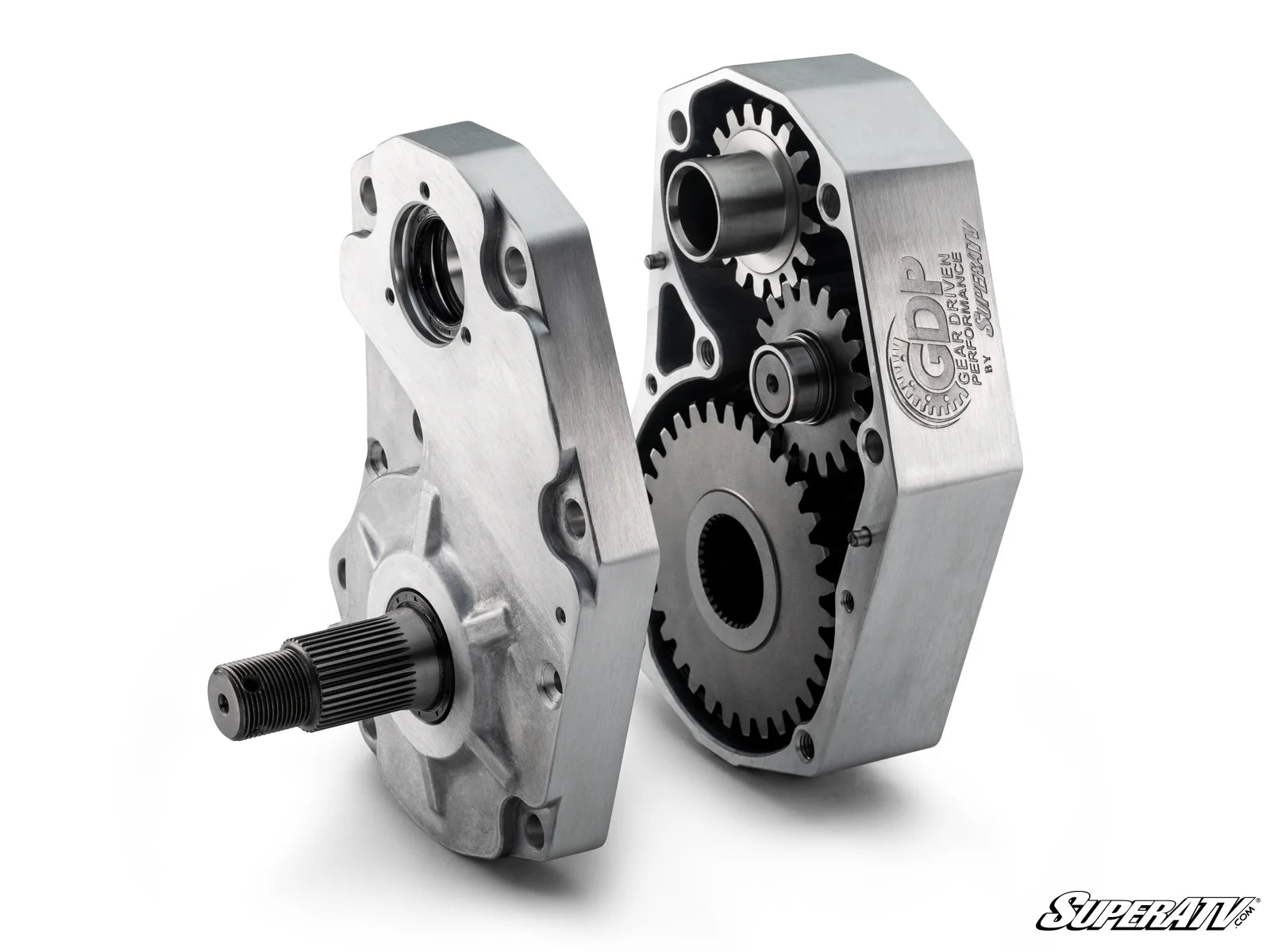

- 9310 alloy steel gears for strength and durability

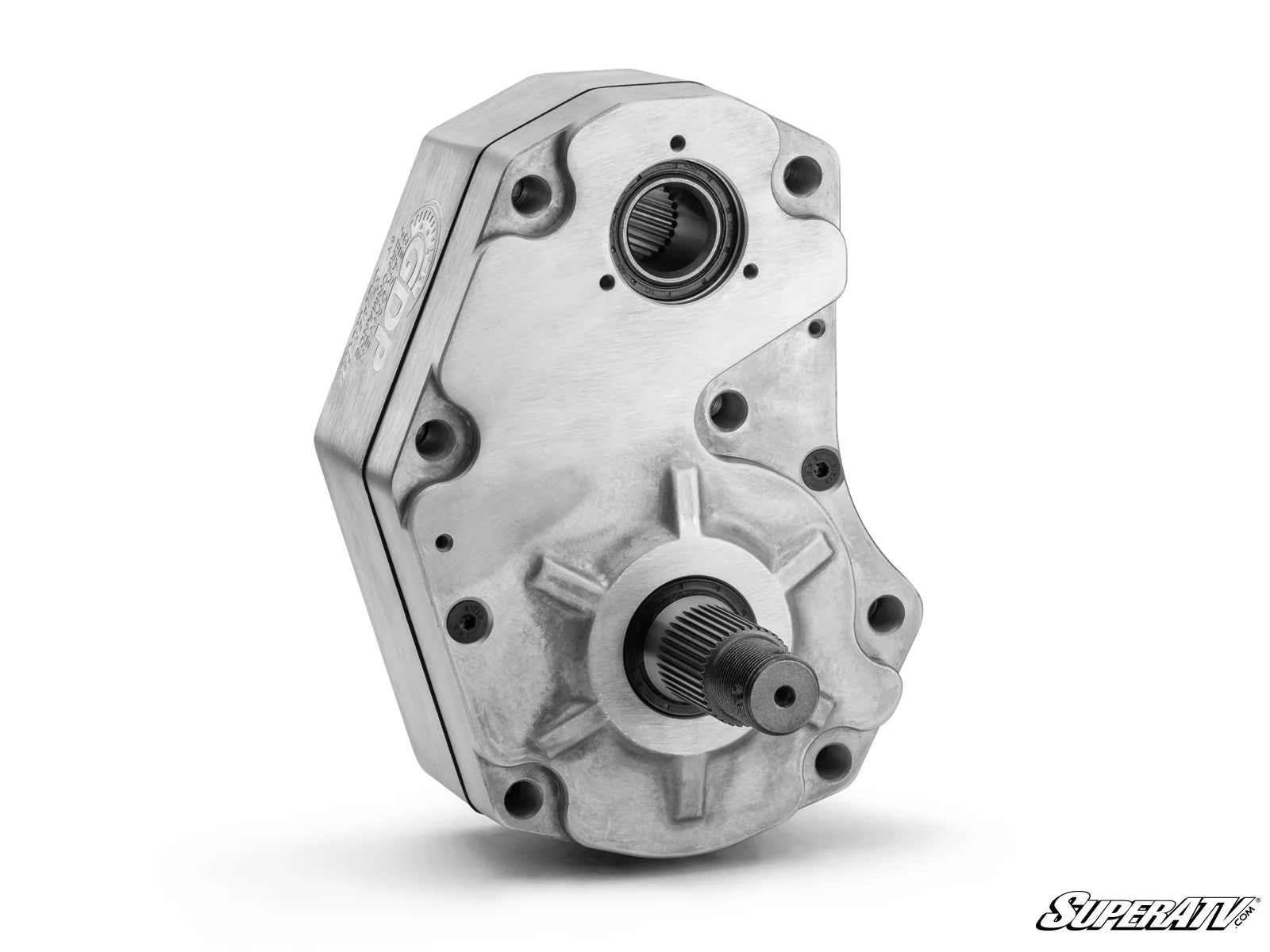

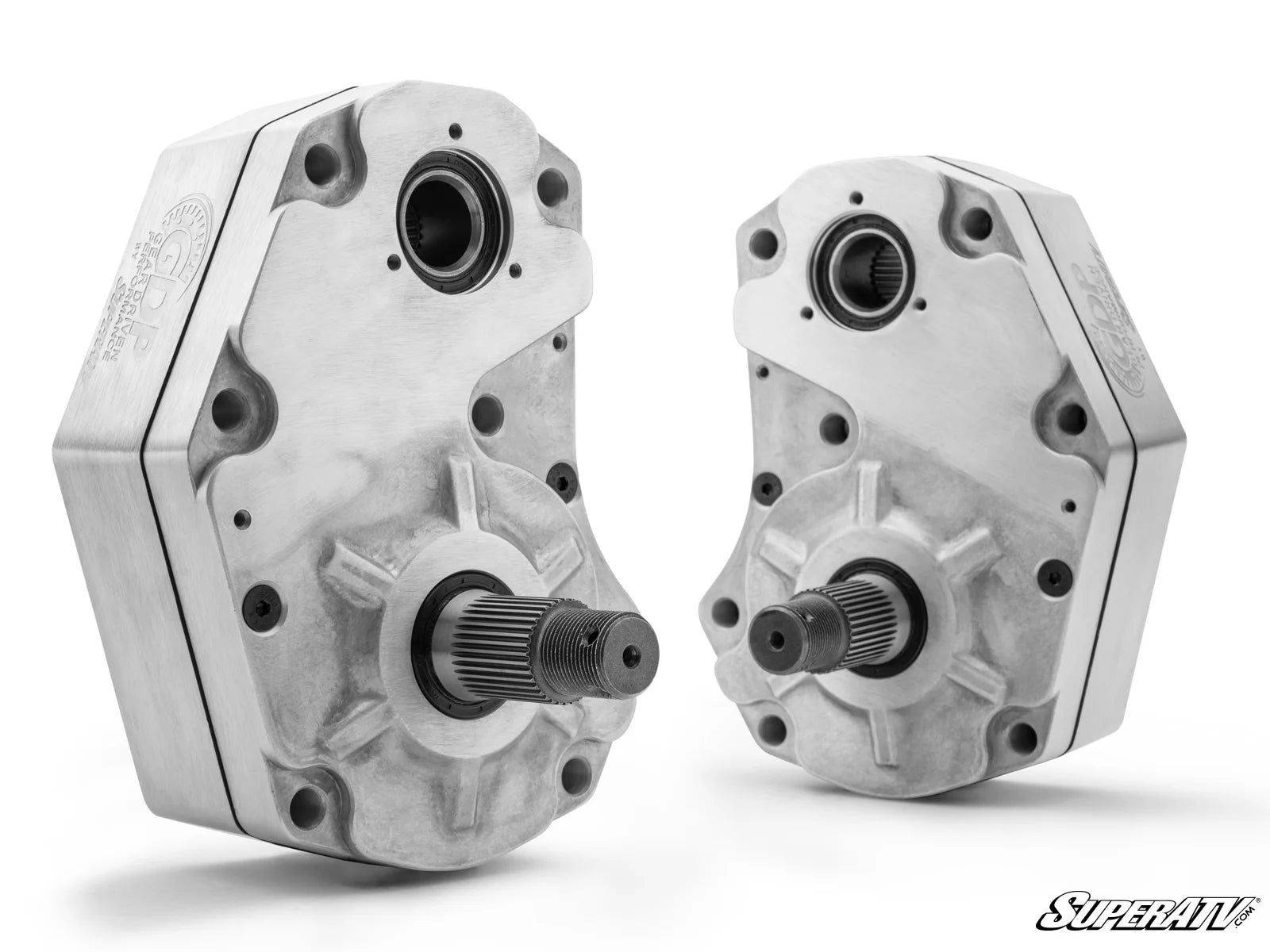

- Choice of cast or USA-made 6061 billet aluminum housings
- Reinforced housings with improved oil flow design
- Advanced sealing system to prevent leaks and contamination
- Heavy-duty backing plates made from advanced steel alloy
- Precision-ground stainless steel slotted brake rotors
- Universal hubs with multiple bolt patterns
- Designed for improved performance in mud and low-speed, high-torque conditions
- Patent # 11,299,042

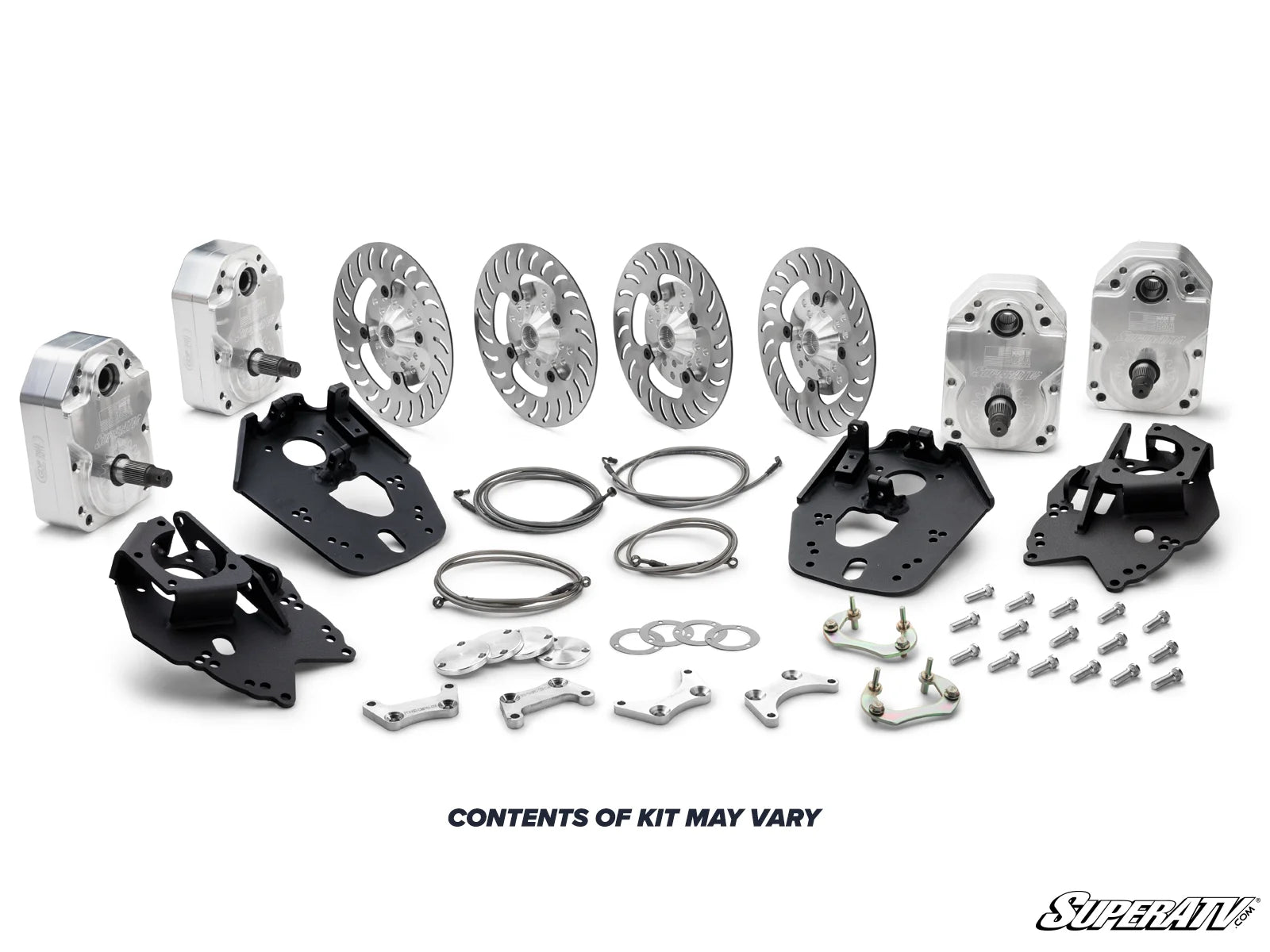

Includes:
- (4) Assembled portal hub boxes with gears, seals, output
- shafts, gaskets, and thrust bearings
- (4) Universal hubs and stainless steel slotted rotors with lugs
- (4) Specialized steel alloy backing plates
- (4) Steel caliper mounting plates with spacers
- (2) Steel steering arms
- Extended brake lines with parking brake and cable brackets
- All required hardware, including recessed castle nut socket
Max Tire Size Recommendation:
- Up to 32” with stock suspension
- Larger tires may fit with minor trimming or slight rubbing
- If you need help figuring out which gear reduction is right for you, check out ourportal gear reduction calculator.
