Performance Tuning:
- 45% gear reduction: aggressive mud and rock setup
- 60% gear reduction: extreme builds only (maximum torque, major speed loss)
- More reduction = dramatically more torque and significantly less top speed
Clearance & Capability:

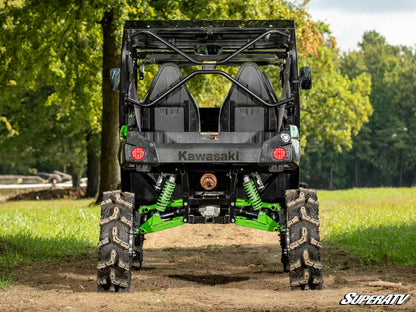

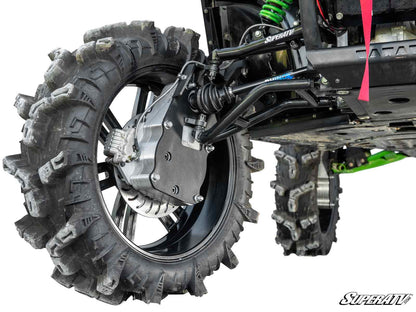

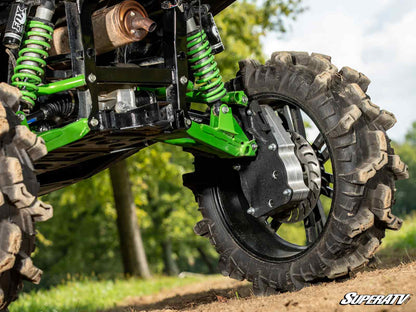

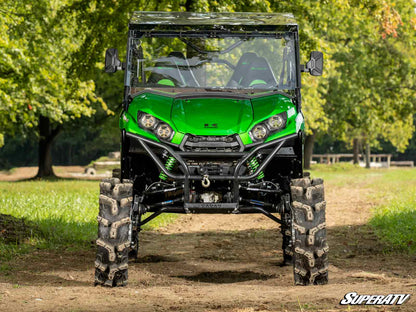

- 8” lift provides massive ground clearance at the hub
- Designed to run 40”+ tires with proper setup
- Built for deep mud, bounty holes, and extreme terrain
Drivetrain Advantage:
- Gear reduction at the hub reduces stress on axles, transmission, and drivetrain components
- Helps manage the load from oversized tires
Housing & Gear Strength:

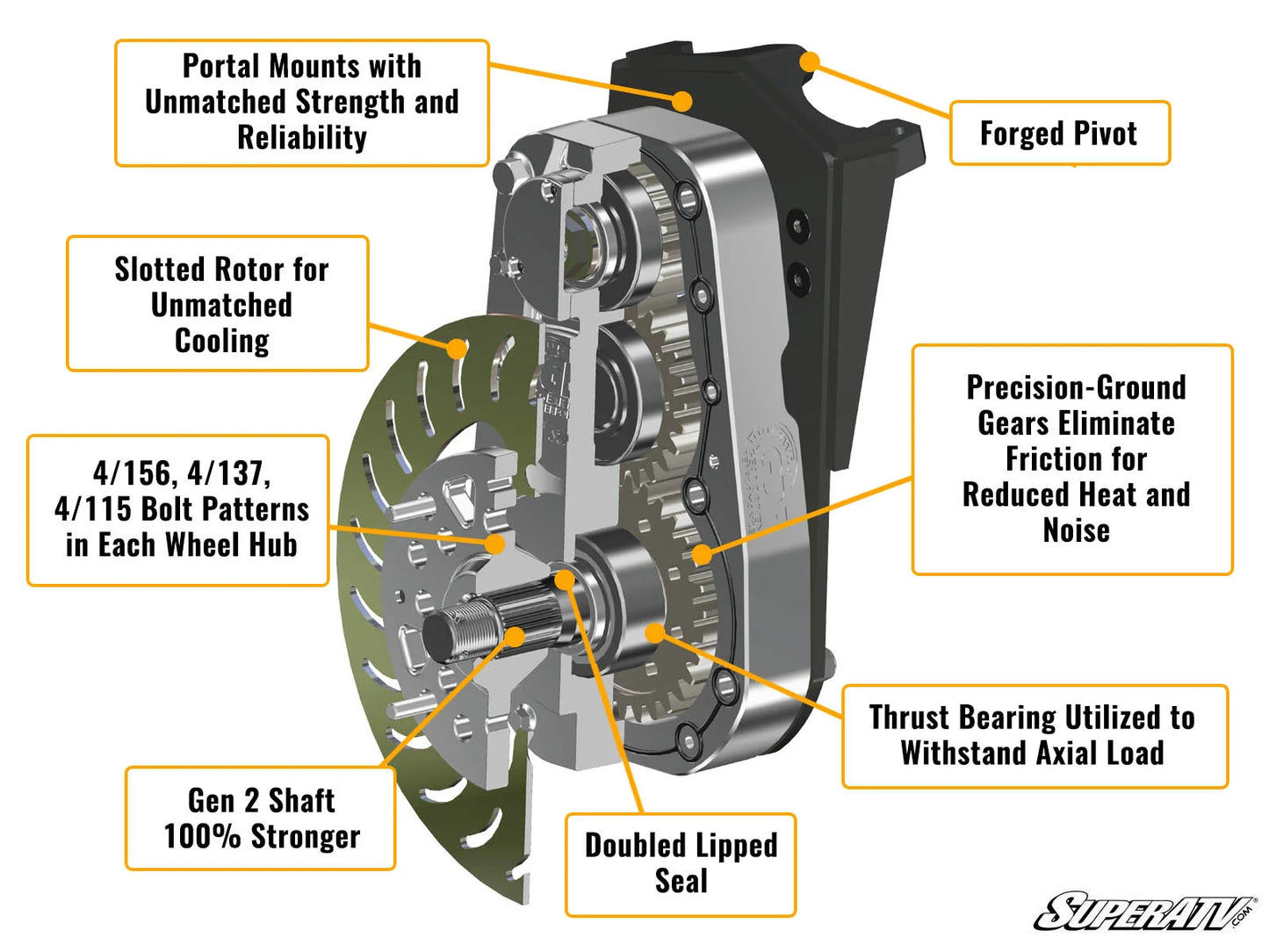

- Reinforced housings designed for high torque loads and impacts
- Advanced steel alloy backing plates stronger than chromoly

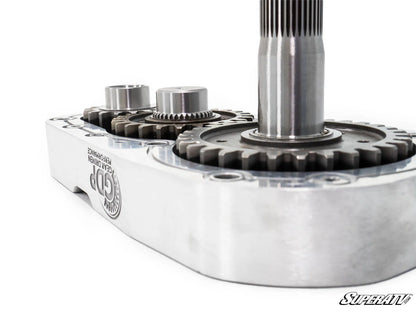

- Optimized oil flow and gear retention design

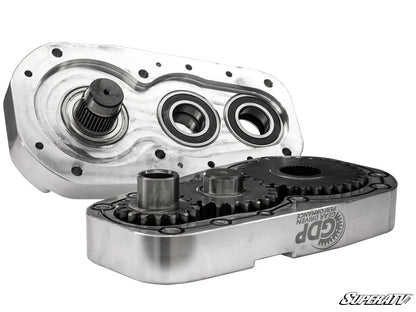

Sealing & Bearings:
- Advanced gaskets and O-rings for long-term oil retention
- Double-lipped output seals and sealed input gear
- High-performance bearings to maintain gear alignment and durability
Suspension & Tire Pairing (Guidelines):
- Up to 34” tires: stock
- 38” tires: forward A-arms
- 40” tires: A-arms + lift
- 44” tires: full lift setup

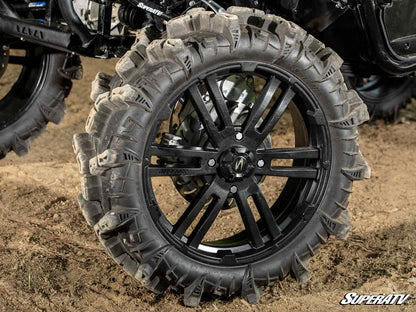

Wheel Requirements:
- Minimum 22” wheels
- Max 5” backspacing
- Minimum 3.25” center bore (or requires spacer)
- Critical Requirement:
- Frame stiffener strongly recommended for structural integrity
Includes:

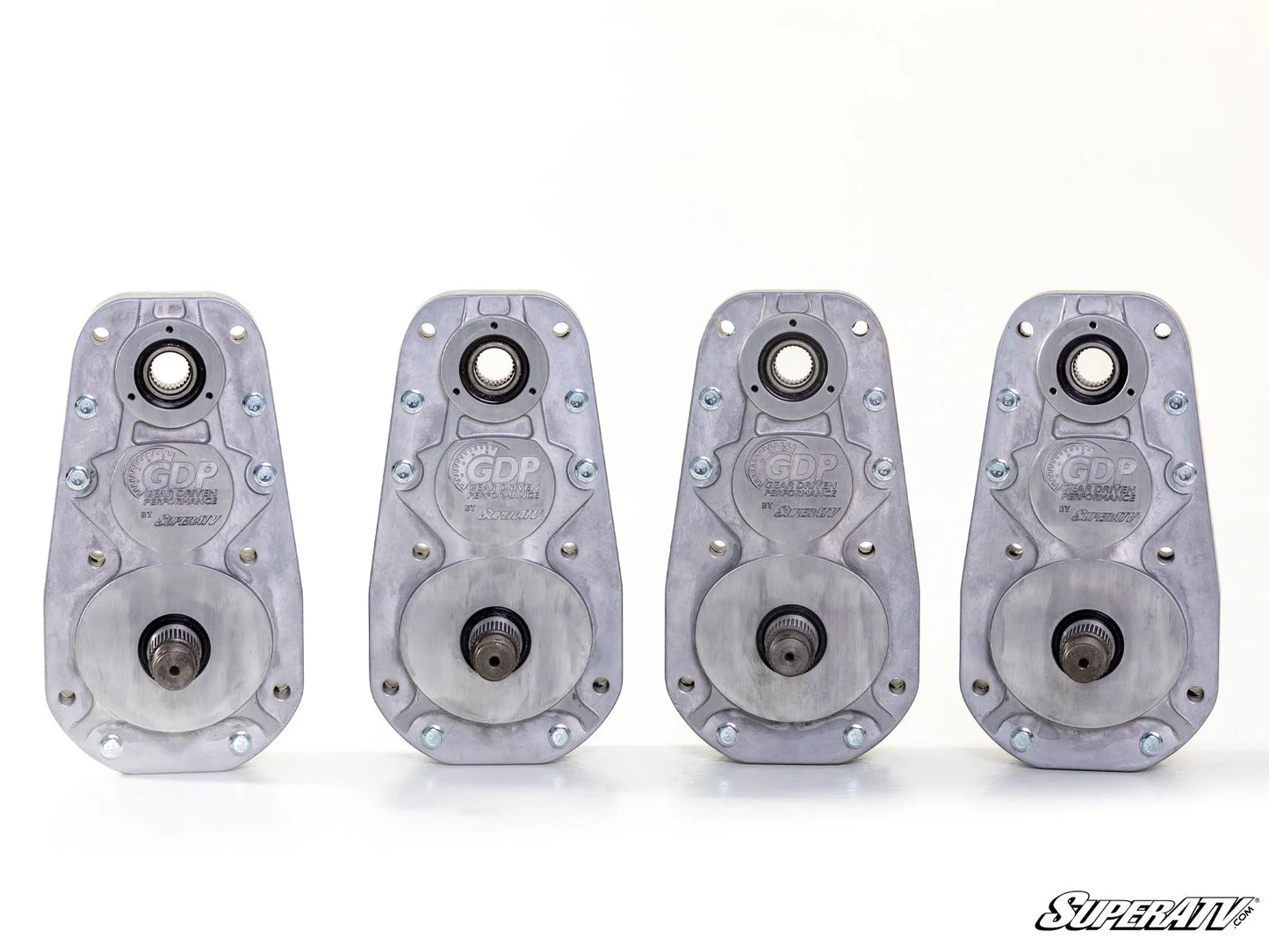

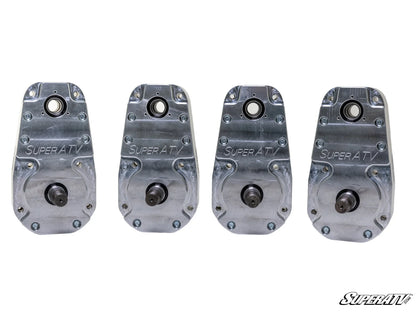

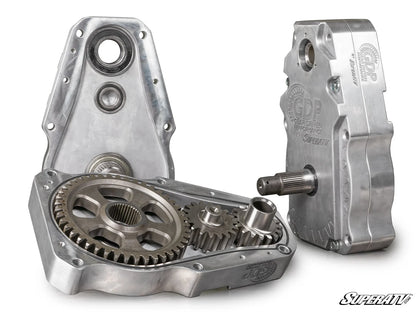

- (4) Portal hub assemblies with gears, seals, and shafts
- Universal hubs and brake components
- Backing plates and caliper mounts
- Brake lines and brackets
- Steering stop kit
- Installation hardware
