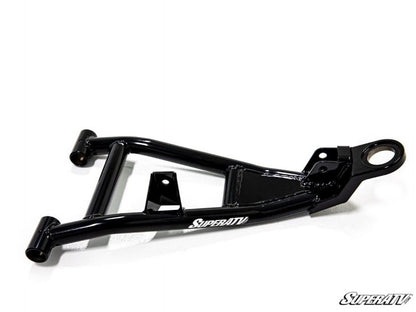

Kawasaki KRX & KRX4 High Clearance 1.5" Forward Offset A-Arms

More clearance, more tire, more confidence—without jumping straight to long travel.

These High-Clearance 1.5” Forward Offset A-Arms are built for riders pushing into bigger tires and rougher terrain but still want to keep a practical, trail-friendly setup. Stronger than stock, more adjustable, and designed to take abuse.

• 1.5” forward offset for increased wheelbase and stability
• Fits up to 36” tires (no lift required)
• High-clearance dual-bend design to avoid hang-ups
• 1.25” diameter steel tubing (25% larger than stock)
• Adjustable pivot blocks for camber tuning
• Built-in steering stops
• UV-resistant powder coat finish
• Lifetime warranty

• Bushings and sleeves NOT included (reuse OEM or upgrade)
• Ball joints included (Keller Ball Joints only)
• Keller Ball Joints feature:
  Threaded, two-piece design (no snap ring)
  4340 chromoly steel construction
  Greaseable and adjustable
  Lifetime warranty
• Alignment required after installation

• Lift vehicle and remove factory A-arms
• Transfer or install bushings (if applicable)
• Install new A-arms
• Install Keller ball joints
• Reinstall shocks and hardware
• Adjust camber via pivot blocks
• Perform full alignment
