This isn’t a bolt-on upgrade—it’s a full transformation.
The HCR Long Travel Kit pushes your KRX into a completely different category. Wider stance, more clearance, and significantly stronger suspension components turn it from a capable trail machine into a serious rock crawler and high-abuse setup.
Expands width to 72” (from 68” stock)
High-clearance boxed suspension design
+1.75” rear ground clearance
HCR proprietary alloy (30% stronger than chromoly)
TIG-welded construction for strength and durability
CNC chromoly mounting points
Includes Rhino 2.0 heavy-duty axles

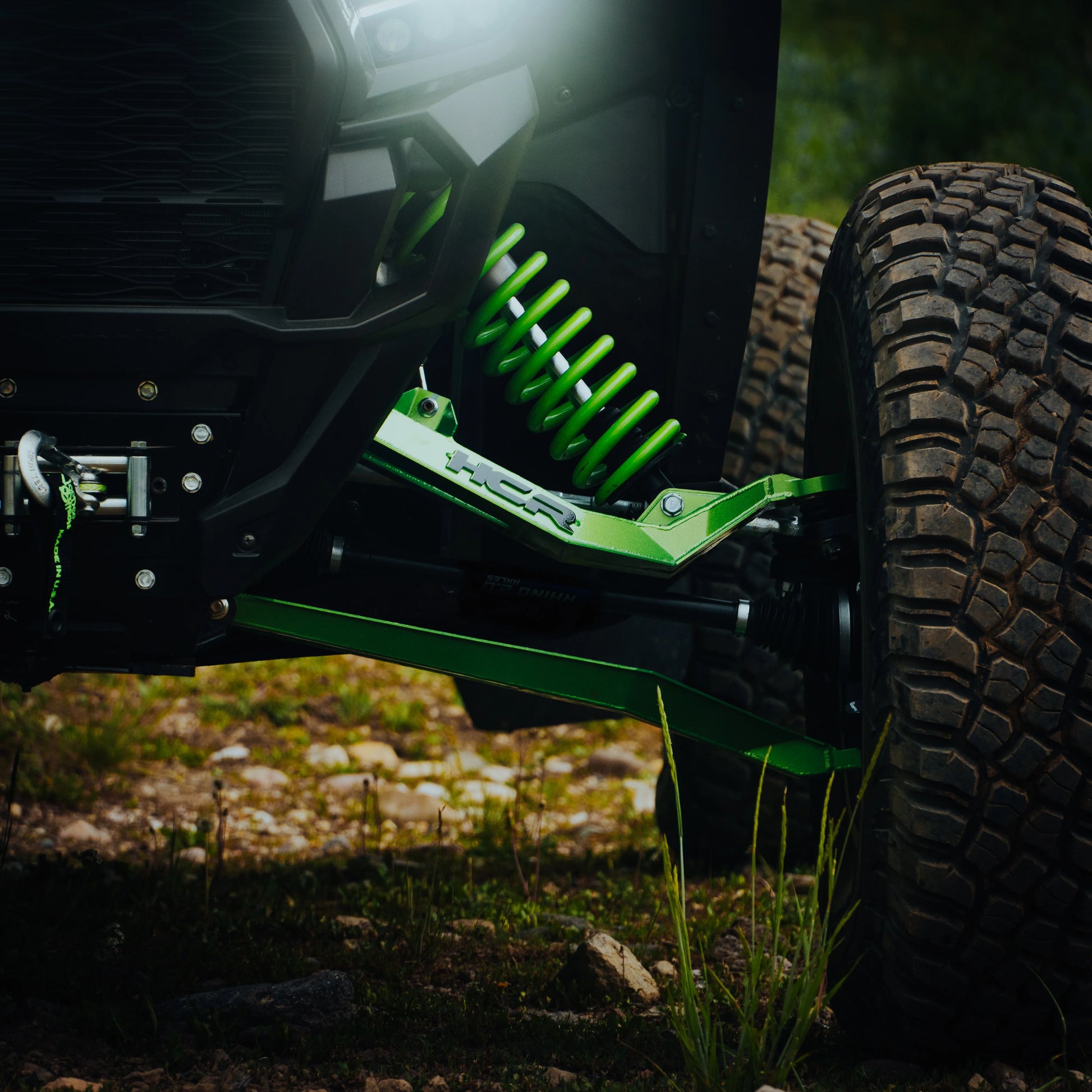

Includes billet aluminum high-clearance radius rods
Made in the USA
Reuses factory shocks
Estimated install time: ~8 hours
Made to order (lead time required)
Front limit straps recommended with included axles
Optional ball joints and powder coat finishes available
Available finishes: Raw, Desert Tan, Black, Candy Green
Kit Includes
(4) Front A-arms
(2) Rear trailing arms
(6) Billet high-clearance radius rods
(4) Rhino 2.0 axles
All required hardware
Remove factory suspension components
Install front A-arms and rear trailing arms
Install radius rods and axles
Reinstall factory shocks
Set alignment and suspension geometry
Test for clearance and proper operation
Fitment
Kawasaki Teryx KRX 1000 (2020+)
Kawasaki Teryx KRX4 1000 (2023+)
