Kawasaki KRX & KRX4 1000 Adjustable Seat Recline or Riser Kit

Fix your seating position without replacing the seats.

This Adjustable Seat Recline & Riser Kit changes how your KRX actually feels to drive. By reclining the seat, lowering the headrest position, and moving you back, it creates a more natural driving position—especially on long rides.

Simple upgrade, noticeable difference.

• Reclines seats approximately 5°

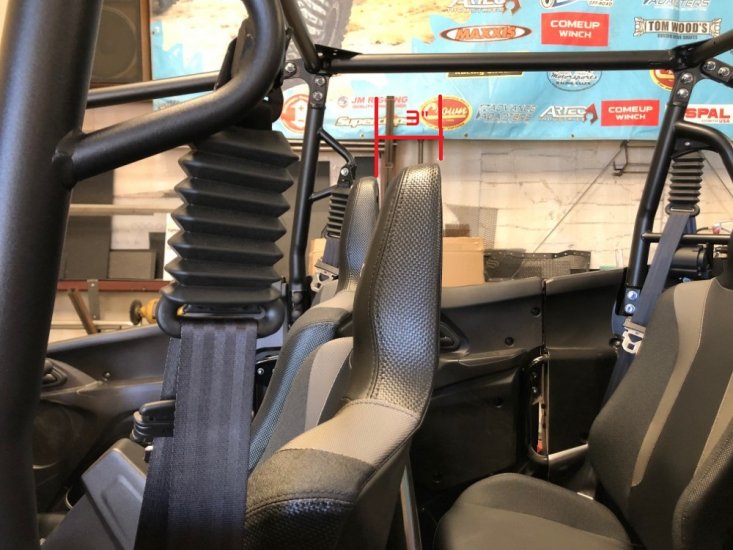

• Lowers seat back (headrest area) by 1.5”
• Moves seat position back 3”
• Adjustable for more or less recline

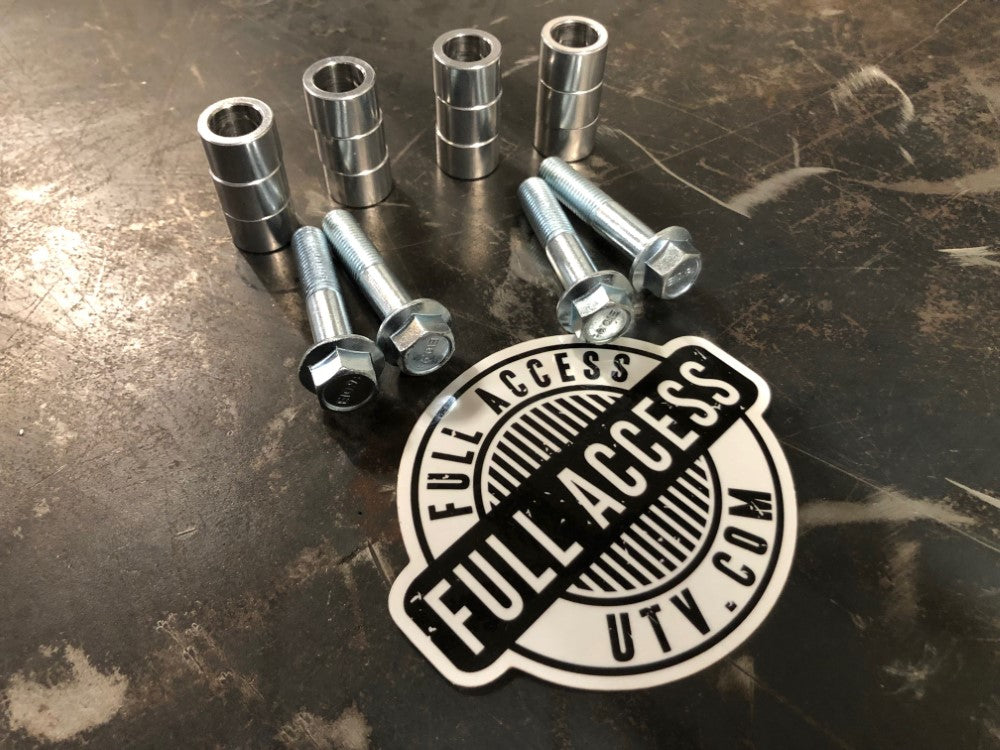

• CNC aluminum risers
• Includes high-grade 10.9 hardware

• Includes (12) aluminum seat risers and hardware for two seats
• About 10-minute installation
• KRX4 rear harness bar seat stop must be bent down for clearance
• Important bolt sizing:
  2020 – April 2021 → 12mm bolts
  May 2021+ → 14mm bolts
• Verify bolt size before ordering (socket size is easiest check)
  ⚠ California Proposition 65 Warning: This product may contain chemicals known to the State of California to cause cancer or reproductive harm

• Only work on the KRX4 front seats.

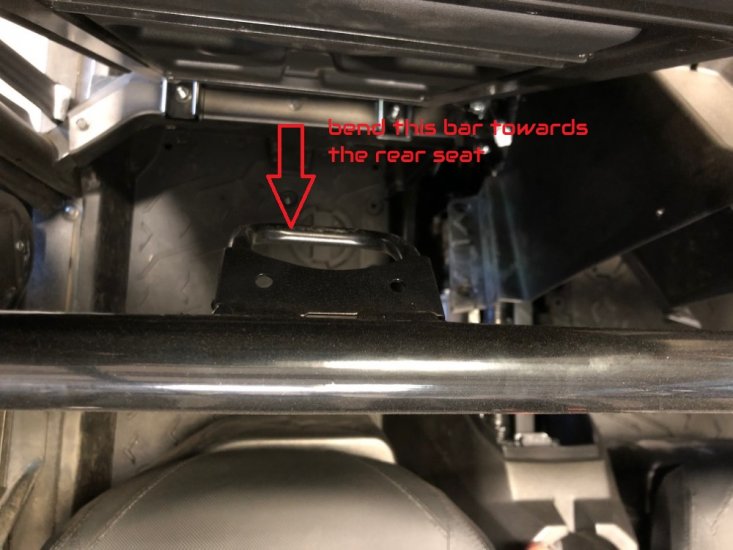

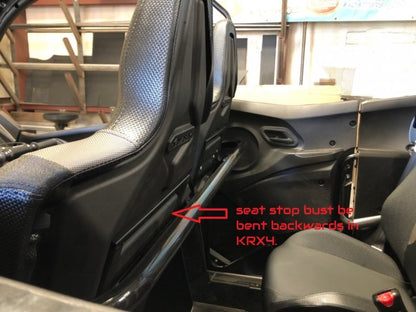

• On a KRX4, the behind the seat harness bar has a seat stop built in. This seat stop will need to be bent down. You can use a hammer or large prybar.
• Remove seat mounting bolts

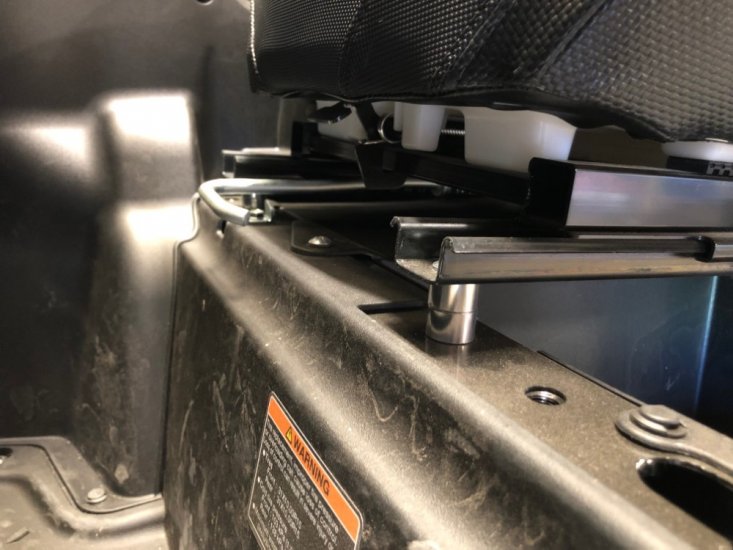

• Install aluminum risers in mounting locations
• Reinstall seats using provided hardware
• Adjust recline angle as desired
• Tighten all hardware and verify seat position before use
