If you’re serious about performance, this is where things change.

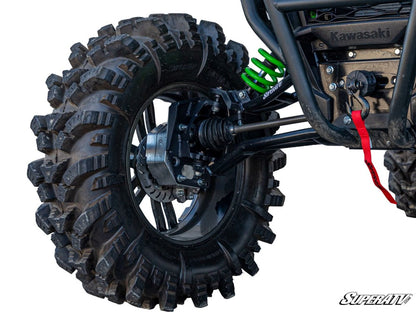

The 4” Portal Gear Lift isn’t just about lift height, it completely transforms how your KRX puts power to the ground. By moving gear reduction to the hubs, you get more torque, less drivetrain stress, and the ability to run bigger tires without killing your machine.
This is the difference between getting through terrain and dominating it.
Key features
4” lift via portal hub system
Gear reduction options: 15% or 30%

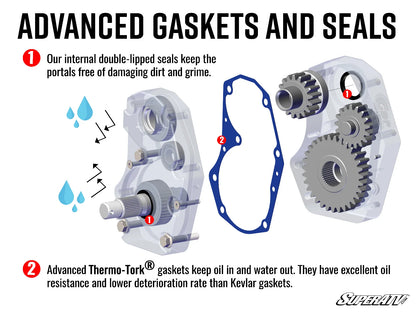

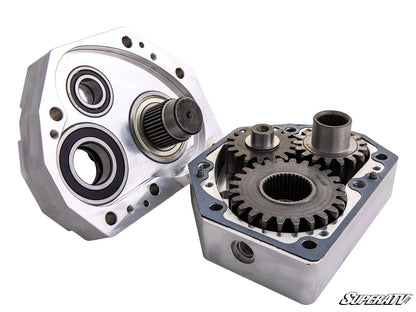

Dual idler gear design for maximum strength
9310 alloy steel precision-ground gears
4340 hardened steel drive shaft

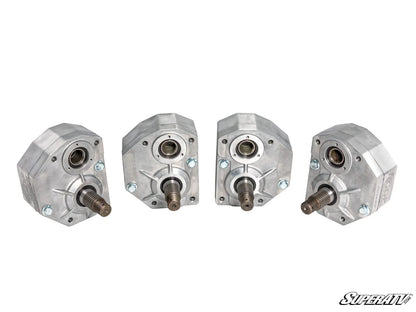

Available in cast or billet aluminum housings
Universal hubs with multiple bolt patterns
Precision-ground stainless steel slotted rotors
tips & Notes
Dual idler gears increase strength and torque distribution
Adds 1.5” total track width (front and rear offset)
Gear reduction reduces stress on axles, diff, and drivetrain
Recommended setups:
Up to 35” tires → 15% reduction
Up to 40” tires → 30% reduction with forward offset A-arms
Wheel requirements:
14” or larger wheels required
Max 5” backspacing
Not compatible with dual beadlocks
Stock wheels require 30 mm wheel spacers
WARNING: This product can impact machine operation. Customer and/or user is responsible for ensuring that this product is compatible with their machine as currently configured, properly installed, and understands any impact this product has or might have on the machine's operation.
⚠California Proposition 65 Warning ⚠ WARNING: This product may contain a chemical known to the State of California to cause cancer or birth defects or other reproductive harm.
Installation
Remove factory hubs, brakes, and knuckles
Install backing plates and portal boxes
Connect steering arms and caliper mounts
Install extended brake lines
Mount hubs, rotors, and wheels
Torque all hardware to spec
Bleed brake system and test operation
